Environment Protection Devices

Environment protection is one of the main global challenges at the moment. On a daily basis we hear about global warming, excessive amounts of rubbish and other problems. In response to this situation, the management of NOVA-TECH Spółka z o.o. decided that the company should produce environment protection devices, such as grinders, which can be used to process solid waste (for example wood) into environmentally-friendly fuel. The quality and efficiency of these devices have already been proved.



We Manufacture Environment Protection Devices

Environment protection is one of the main global challenges at the moment. On a daily basis we hear about global warming, excessive amounts of rubbish and other problems. In response to this situation, the management of NOVA-TECH Spółka z o.o. decided that the company should produce environment protection devices, such as grinders, which can be used to process solid waste (for example wood) into environmentally-friendly fuel. The quality and efficiency of these devices have already been proved.

Above, a 3D model of the NTR 6-1 grinder with a hydraulic pusher for ground material.

Our devices can be used for grinding wood, waste paper and plastics. They are suitable for both small as well as large plants.

We manufacture these machines of the highest quality carbon steels. The cutting and crushing components undergo hardening and tempering.

The cutting components are driven by high quality motors and transmissions, which thanks to their compact size and low weight considerably reduce the dimensions of a device.

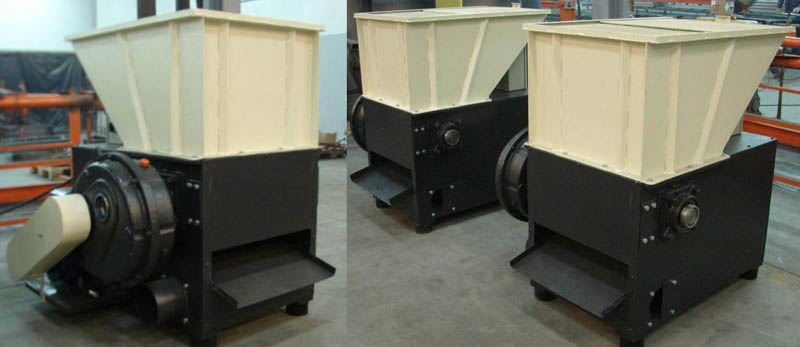

We manufacture 4 types of devices, with different cutting shaft sizes and motor powers.

New! Latest Type of NTR 6-0 Grinder!

We have launched a new grinder! With small size and simplified structure – obtained, among other things, by removing hydraulic elements– the machine, while retaining its general-purpose character, is offered to private users and households at a competitive price.

Device components are shot peened and coated with special paint with a RAL colour chosen by the customer.




 Grinders

Type Shaft [mm] Power Booster hydraulics Knife size [mm] Output [kg/h]
Diameter Length Hardwood Softwood Chipboard
 NTR 6-0   O260  650  12 kW  -  30 x 30  175 - 230  170 - 220  230 - 320
 NTR 6-1  O260  650  18,5 kW  +  30 x 30  250 - 330  240 - 310  330 - 460
 NTR 8-2  O330  820  22 kW  +  35 x 35  400 - 520  350 - 460  430 - 600
 NTR 10-1  O350  1020  30 kW  +  50 x 50  1150 - 1500  1100 - 1400  1250 - 1750
